Tcat Switch
Your present position：
Home
>>
PRUDUCTS
>>
Tcat Switch

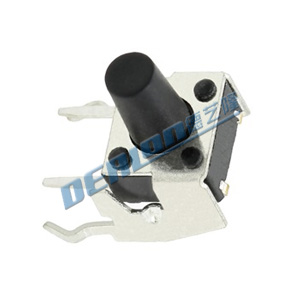

TC-1105AH
Size:6.0mm*6.0mm
SPECIFICATION
Contact Rating
DC 12V 50mA
Contact Resistance
100mΩ max
Insulation Resistance
100MΩ min. 500V DC
Operating Force
160gf,260gf
Travel
0.15mm±0.1mm
Operating Life
100,000 cycles
Operating Temp
-25°C ~ +85°C
Storage Temp
-25°C ~ +85°C

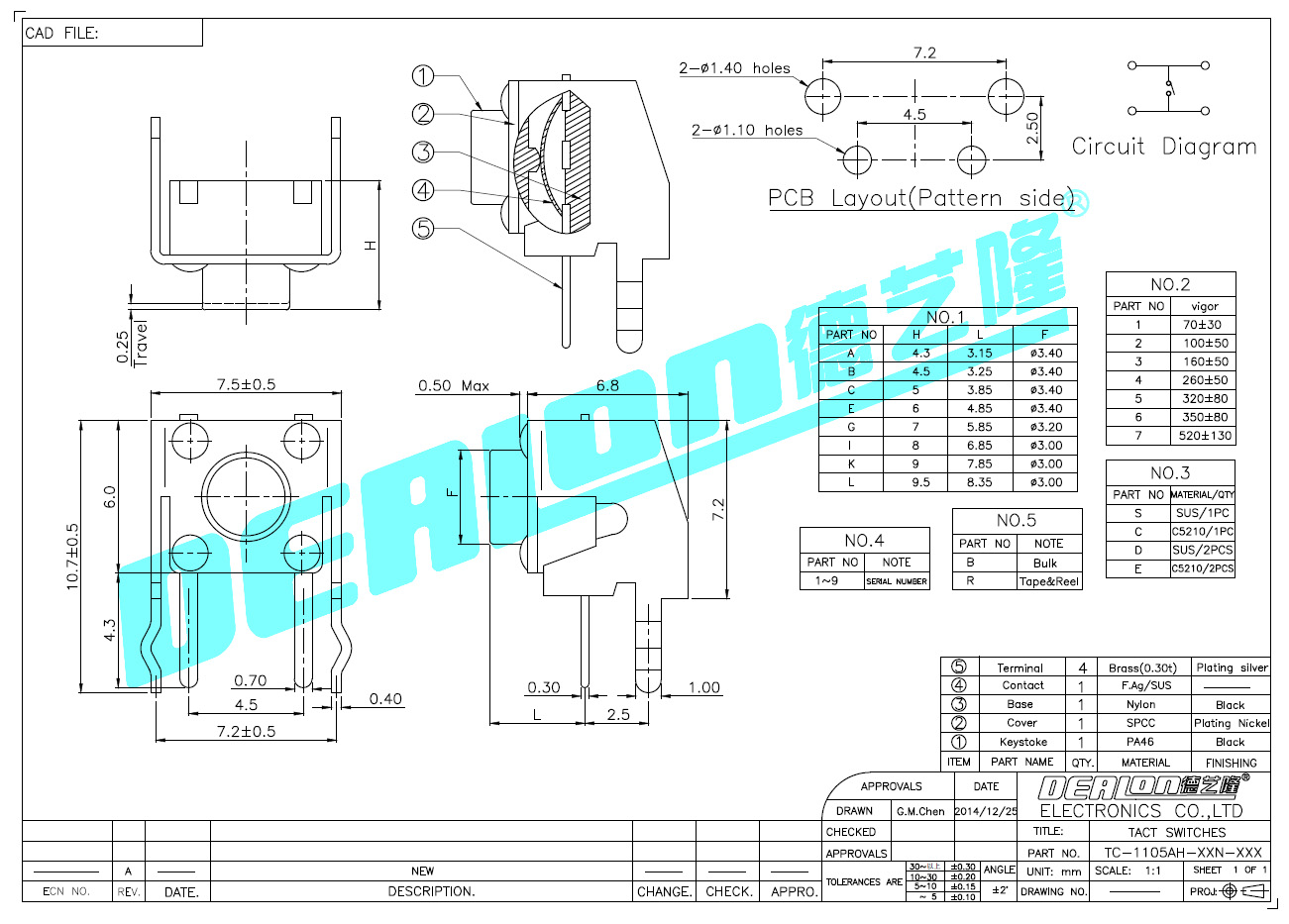

Drawings
